IK-4KH Ultra HD

3-CMOS HD 1/2.9" Sensors
- 3840 x 2160 59.94 / 50Hz
- High Resolution 1,600 TVL
- Sensitivity f6.1 @ 2000 lux - 50 Hz
- Compact 32 x 38 x 41mm 70g weight
- C-mount lens mount
- Ultra Flexible Camera - CCU cable
- 3, 6, 10 & 15 metres long

3CMOS IK-4KE

Ultra HD 4K, 3G-SDI &HD-SDI output
- Switchable between 4K, 1080P and 1080i
- 5 User-configurable scene files
- Image flip and mirror
- Gen-lock for 3D and multi-camera use
- Remote control interface via RS232
- 12 point colour matrix
- Auto and manual white balance
- Auto and manual electronic shutter
- Auto shutter has manual user mask setting
- Black pedestal range - (Negative expanded)
- Edge detail output
- Black gamma level set

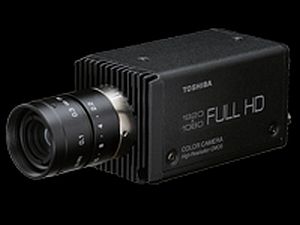

1CMOS IK-HR2D

1/3”progressive scan color CMOS (Rolling shutter)
Progressive 1080p/720p /1080i switchable
Scan Frequency :
1080p@59.94 Hz or 50 Hz;
1080i@@59.94 Hz or 50 Hz;
720p@59.94 Hz or 50 Hz
Scan Frequency USB Output: 1920 x 1080 - 5 fps ; 1280 x 720 10 fps
DVI-D Terminal; USB Video Class 1.1 mini-USB 2.0

IK-HR1S

Ultra compact (approx 44 x 44
x 78mm)
Output selectable between
1080i and 720p at 50 or
60 Hz Video
On-screen menu
HD-SDI Video Output

3CMOS IK-HD5H

3CMOS, 1 /2.9” HD CMOS Sensor, progressive
3G/HD-SDI & DVI-D Output
Full HD 1080p/1080i switchable
Enhanced IR Sensitivity
Genlock
C-mount
Remote control via RS232

3CMOS IK-HD5E

1080 p/i scan 50 Hz/59.94 Hz switchable
Output Signal: 3G/HD-SDI; DVI-D Terminal
Auto & Manual White Balance
Switchable Functionality between visible and NIR
Expanded menu functions for IR mode

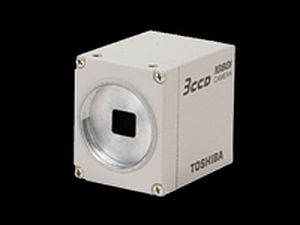

3CCD IK-HD1H

1080i (16:9) output
3CCD (1/3") interlace colour RGB
Scan frequency 50Hz / 59.94 Hz (switchable)
Excellent colour reproduction
Auto & manulal White Balance
C-Mount

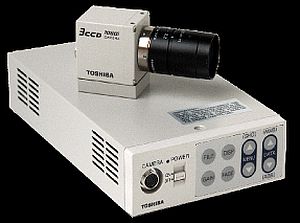

3CCD IK-HD2E CCU

Black Gamma & Black Balance
Detail Gain & Manual Area Zone
Video output: HD-SDI or analogue RGB or YPbPr
Camera control via RS-232 or on-screen.display (OSD)
Auto & manulal White Balance
Camera cables up to 30m available

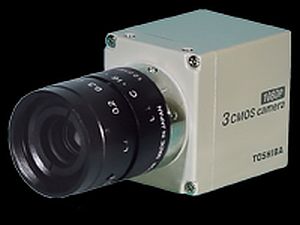

3 CMOS IK-HD3H

3CMOS, 1/3” HD CMOS Sensor, progressive
1920 x1080 p/i Digital DVI output
1000 TV lines resolution
Binning mode for 4x increase in sensitivity
Image Flip & Mirror
GenLock for 3D or multicamera use
C-mount
Remote control via RS232

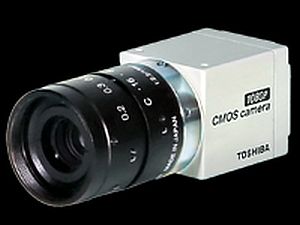

1CMOS IK-HR3H

2.1 Mpix, 1/3” HD CMOS Sensor
1920 x1080 p/i Digital DVI output
900 TV lines resolution
Binning mode for 4x increase in sensitivity
Image Flip & Mirror
GenLock for 3D or multicamera use
C-mount
Remote control via RS232

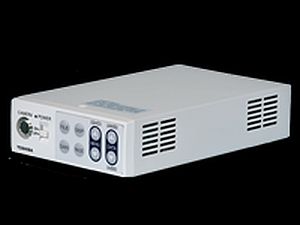

3 CMOS IK-HD3E

1080 p/i scan 50 Hz/59.94 Hz switchable
Output Signal: DVI (digital RGB) DVI-D terminal
Camera control via RS-232 or on-screen.display (OSD)
Auto & Manulal White Balance
Controls both IK-HD3H and IK-HR3H camera heads
Camera cables up to 15 m available

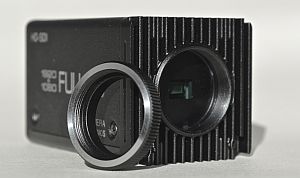

IK-HR1P- CS-Mount

Ultra compact (approx 44 x 44
x 78mm)
Output selectable between
1080i and 720p at 50 or
60 Hz Video
On-screen menu
HD-SDI Video Output
Special CS-mount version of
the Toshiba IK-HR1S
C-CS adapter included

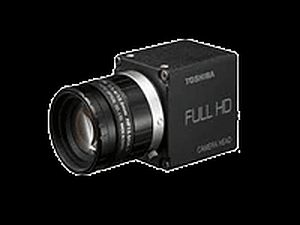

1CMOS IK-HR1H

Ultra compact CMOS Full-HD micro camera head
1/3" colour CMOS sensor (16:9 format) progressive scan
1920 x 1080 Pixels
C-mount lens adaptable
Size 30 mm x 35 mm x 36 mm
Weight 48 g (1.69 oz/ 0.10 lbs)

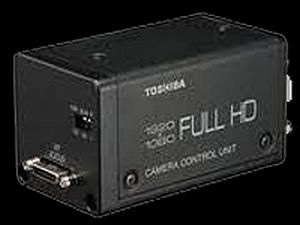

1CMOS IK-HR1CS

Progressive 720p / interlace 1080i switchable
Scan Frequency: 720p@50 Hz or 59.94 Hz 1080i@50 Hz or 59.94 Hz
Output resolutions (switchable): 1080 format: 1920 x 1080 pixel or 720 format: 1280 x 720 pixel
Digital video out via HD-SDI
Control via keypad and On-Screen-Menu or RS-232
