WVS-20

Products > Welding cameras

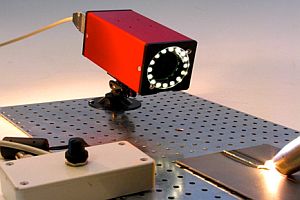

The welding camera WVS-20 is an analog video camera system for simple applications, e.g. clamping devices. The camera delivers a clear and sharp color image and enables optimal viewing of welding head, the workpiece and the arc. The brightness is easily adjustable at the keypad before, during and after the welding process. Thereby the setup time significantly shortened or any welding defects can be detected faster.

The sharpness (distance) can be adjusted perfectly at the rear of the camera. An integrated ring light provides illumination during  set-up.

Automatic switching of the image brightness by ext. Trigger control is possible.

A compact housing (60x60x140mm) with an easily replaceable glass protects the camera module and lens from heat and dust.

A  keypad  cable can be installed up to 50m.
WVS-20
